Charney 101 Classroom

Charney 101 Classroom

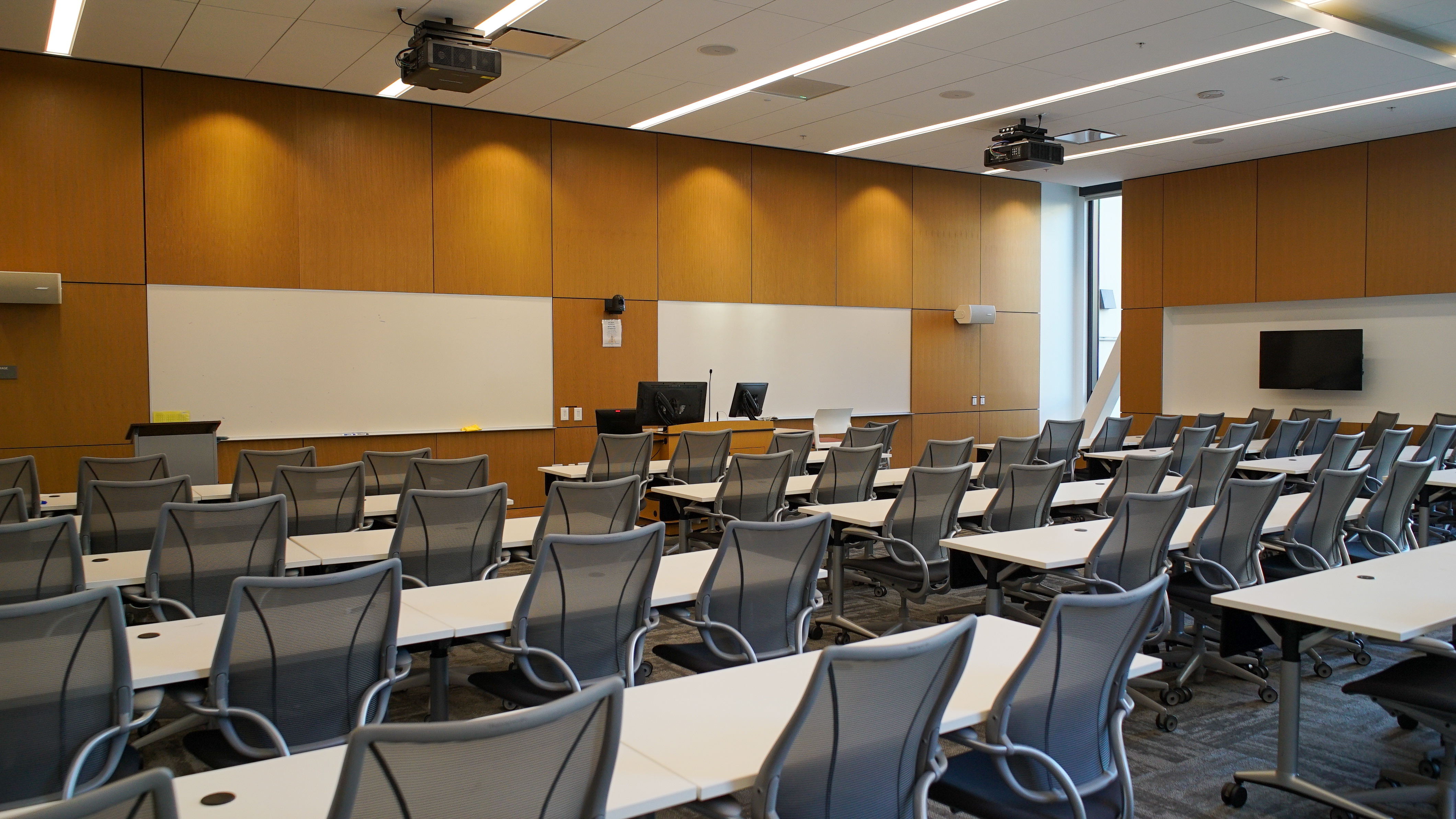

This room in Charney Hall has been designed as a collaborative space with movable changes and tables so that you can configure the room as you see fit. The eight LED screens in the room allow for collaboration between teams using Apple TVs found in the room.

Technology in the classroom

Desktop PC and Mac
Wacom Screen
Laptop Connection (VGA, HDMI)
Blu-Ray Player
Assistive Listening
Apple TV
4 microphones (2 lapel and 2 handhelds) which are available for checkout
Podium Microphone
Classroom Capture
Video Conferencing using Zoom or Skype
Ethernet Connection
Whiteboard
Projection System
Audio System
Movable Tables and Chairs
Eight LED Screens

Maximum: 115

How do I operate the equipment?

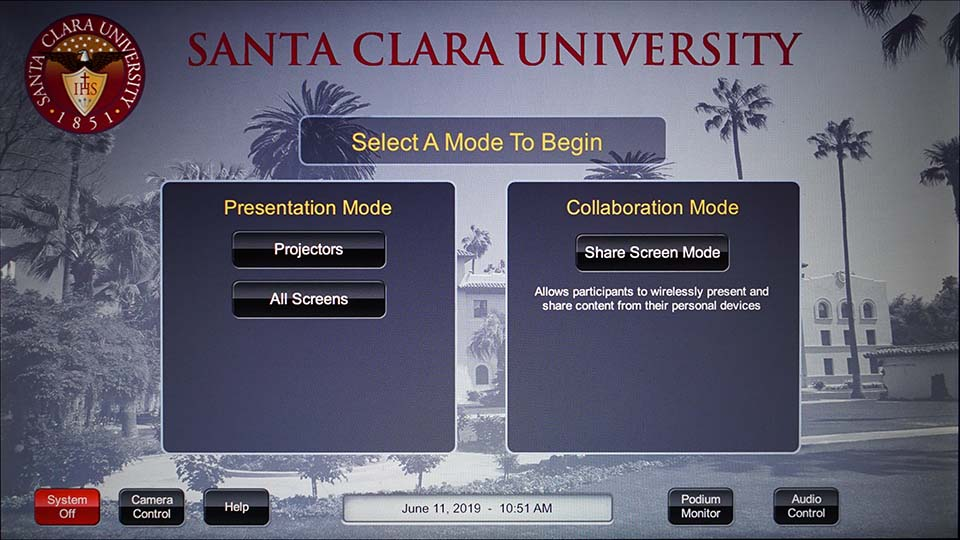

Presentation Mode

You can determine whether you want the source selected to project on the projectors only or on all the screens in the room. Control is then the same as the other classrooms.

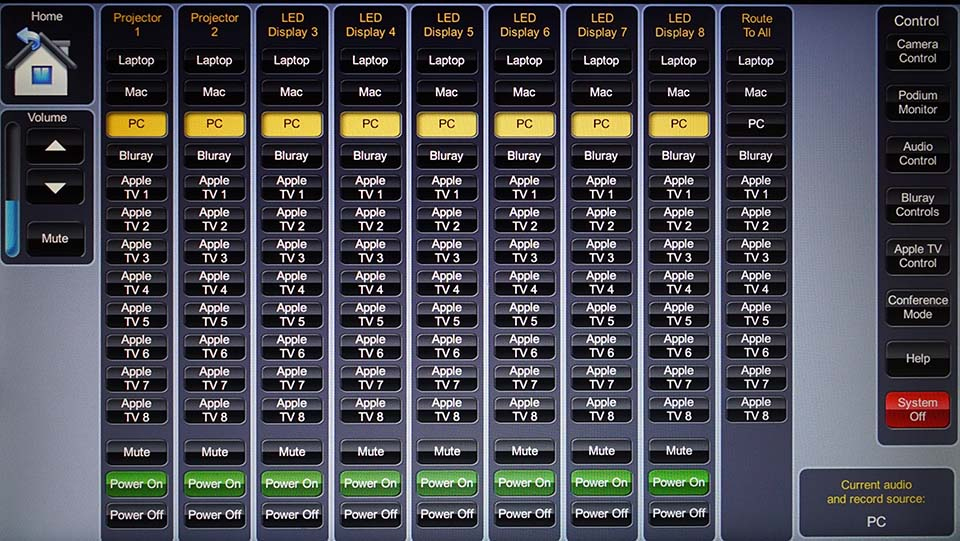

Collaboration Mode

This will allow you to select separate sources to collaborate in the space. By default, each Apple TV is routed to each LED screen in the room. You would use an Apple Laptop with airplay to connect to each screen. Control is then the same as the other classrooms.

Blu-ray

You are able to play Bluray or DVD discs. The Bluray Control screen will provide you with control for common functions such as play, rewind, fast-forward, and stop.

Apple TV

All our classrooms are equipped with Apple TV. Look for the room on your Apple Device
then input the password on the projector screen to connect.

Laptop

VGA and HDMI connections are provided at the instructors podium. The system will automatically select HDMI or VGA based on the cable connected.

Audio Control

Control volume levels in the room.

Camera Control

This is used to control and adjust the camera for both classroom capture and video conferencing. The camera selected is what is used for capture. You can select between two cameras.

Volume

Volume control for the entire classroom.

Projector Mute

This will blank out the projector. Tap to toggle on/off.

Projector On/Off

This will turn the projector on and off.

Audio/Camera/Bluray/Apple TV Control

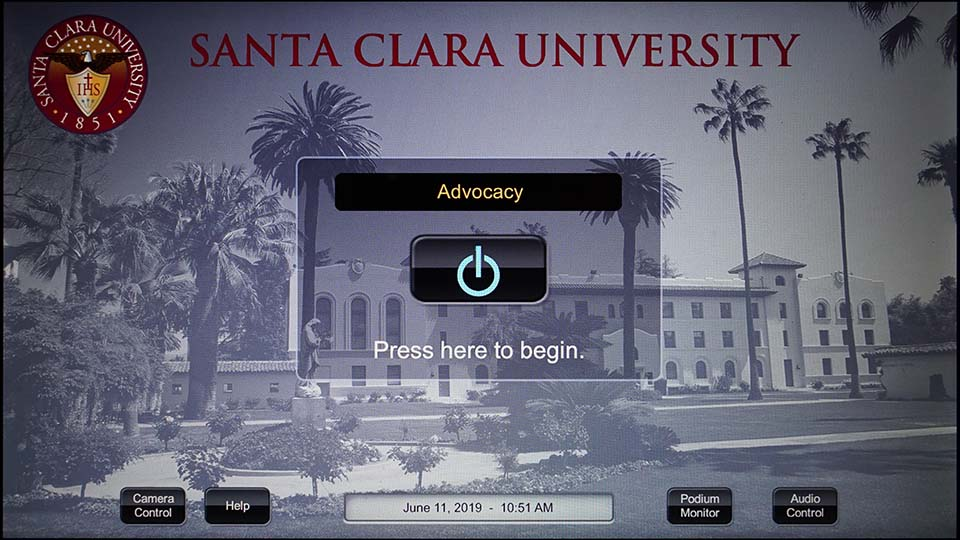

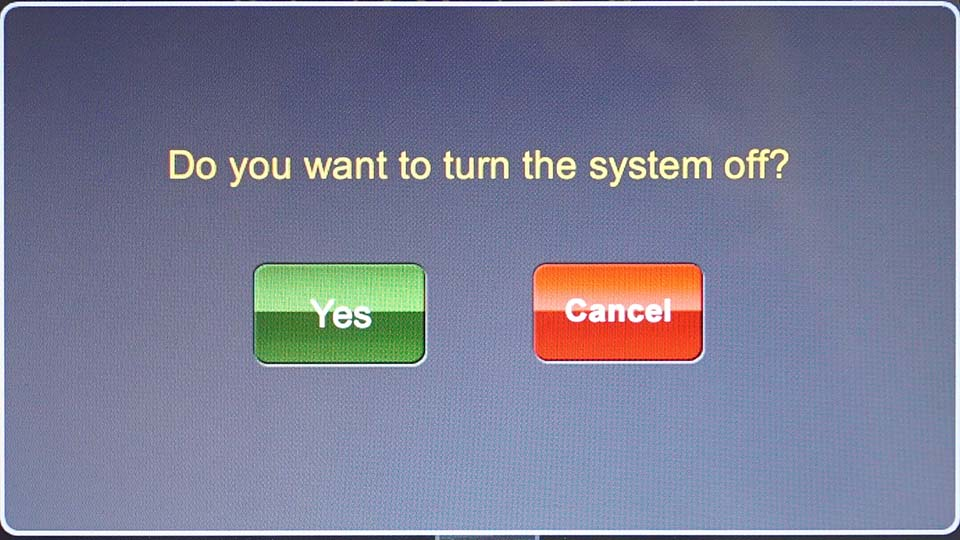

This will show you the control options for each source. Please remember to shut off the system after you are done using the room. This is done by tapping System Off. When prompted, please tap Yes.




Frequently Asked Questions

Is there a computer?

Yes. You can find a PC and Mac in the room. Use your SCU login to log into the
computer.

Can I connect my laptop to the projector?

Yes. You can use the HDMI or VGA cable in the room to connect your laptop to the
projector.

Can I play DVDs?

Yes. You can use the Blu-ray player in the room to play DVDs or Blu-rays.

How do I use the Apple TV in the room ?

Please see this tutorial on how to connect your Apple device to Apple TV.

How can I be trained on how to use the technology?

If you need in person training, please schedule a training with us at lawhelpdesk@scu.edu or by creating a ticket with your request at lawhelpdesk.scu.edu.

Where can I checkout a wireless microphone?

Wireless microphones are available at the library circulation desk on the second floor of Charney Hall. You will need your access card and classroom number to
checkout the microphone.

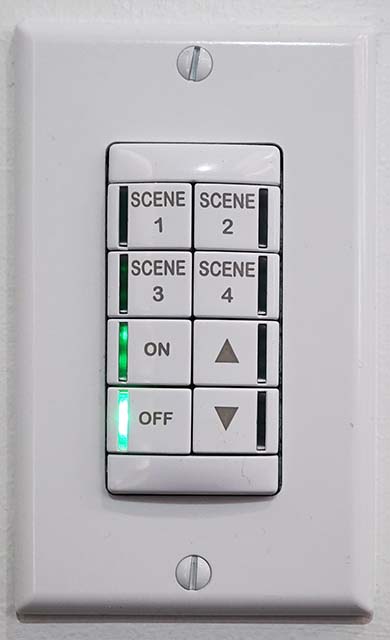

How do I control the lights?

There is a light switch located in the classroom. It is usually located near the class entrance and looks like this.

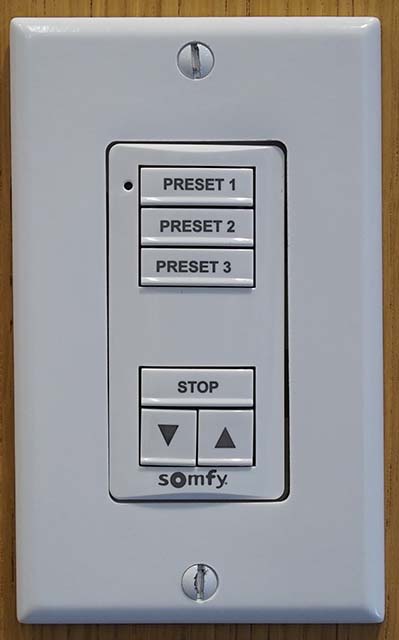

How do I control the shades?


The shade control in this room is located to the right of the classroom (facing the

instructor’s desk). This is what it looks like.



How do I schedule the room for special events?


If you are looking at scheduling this room for a special event, please contact the

Dean’s Office.


What is assistive listening?


Assistive listening is a device that allows those of hard of hearing to hear what the instructor is saying in the room. It’s a set of headphones tied to a receiver in the room. If you have students that are hard of hearing and need to use this device, please contact us at lawhelpdesk@scu.edu or create a ticket at lawhelpdesk.scu.edu. There is a limit of two devices per room.


Who do I contact if I run into issues?


Please send an email to lawhelpdesk@scu.edu or create a ticket at lawhelpdesk.scu.edu. Please be as descriptive as possible and note the room you were in.


How can I stream an outside speaker into my class?


Zoom or Skype would allow you to bring a remote guest speaker into your class. Please see the following on how to do so. If you would like training, please contact us at lawhelpdesk@scu.edu or create a ticket at lawhelpdesk.scu.edu.


Anything special about this room I should know?


It is a collaborative space where students can break up into teams and use the screens in the classroom. For training on how to do so, please contact us at lawhelpdesk@scu.edu or create a ticket at lawhelpdesk.scu.edu. Here is documentation on how the workflow works for that as well. You will need to have one students with an Apple laptop to connect to the screen.


Are there power outlets in the room for students?


There are no outlets found in the room but there are powerbanks that can be checked out in the room. For more information about those powerbanks, please see here.
